Product Details:
|
| Product Name: | Textured Fiberglass Fabric Cloth | Weight: | 624g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Alkali Contect: | Alkali Free |
| Material: | 100% E Fiberglass | Good Features: | High Temperature Resistance,low Thermal Conductivity |
| Color: | White Yellow | Main Application: | Thermal Insulation And Heat Protection |
| High Light: | 2025 Fiberglass Cloth Roll,E fiberglass Woven Fiberglass Cloth,Fiberglass Cloth Roll Fire Protection |
||
High-Temperature Resistance Fire Protection Texturized Bulk Yarn Fiberglass Cloth Roll
Fiberglass Description
Texturized fiberglass fabric is made of continuous fiberglass yarns through a unique instrument with high pressure. Because of a lot of air in the yarns, so there are more heat preservation and heat insulation properties than untreated yarns.
Textured fiberglass fabrics have better heat insulation and filling-ability, this construction has the better capability for thermal conductivity, high dust accommodation, and the construction of the fabric influences high filterability and. It is valued over a wide range for heat production and safety fireproof of industry.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Threads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
Thermal insulation and heat protection
Expansion joints and piping
Features
Texturized fiberglass cloth is woven with bulky yarn which is textured by high-pressure air.
It has high-temperature resistance, low thermal conductivity coefficient,anti-corrosion, and good filterability
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

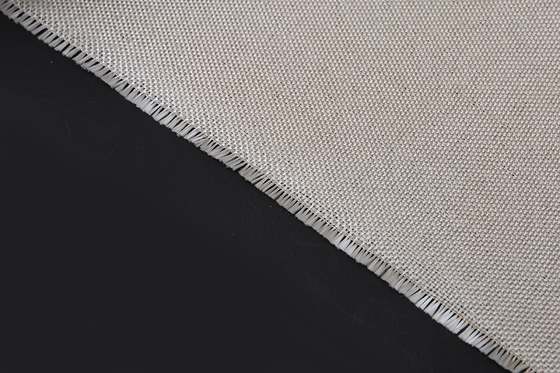

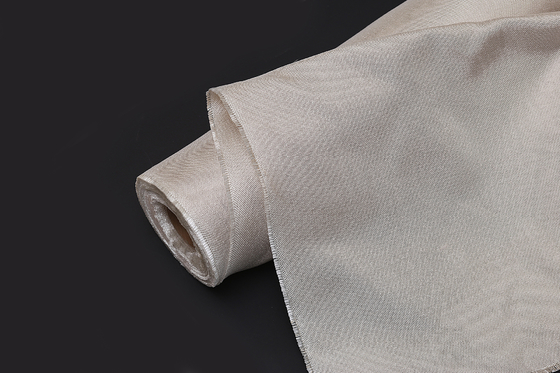

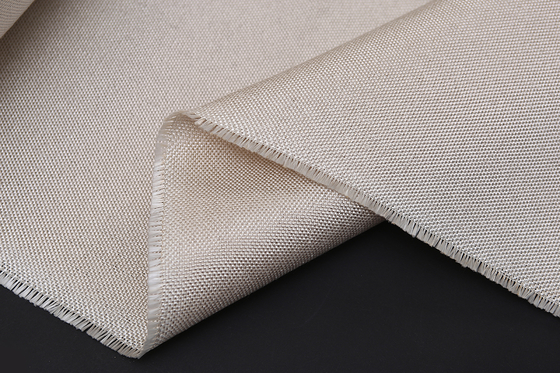

Detail Product Images
