Product Details:
|
| Product Name: | Textured Fiberglass Fabric Cloth | Weight: | 624g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Alkali Contect: | Alkali Free |
| Material: | 100% E Fiberglass | Good Features: | High Temperature Resistance,low Thermal Conductivity |
| Color: | White Yellow | Main Application: | Thermal Insulation And Heat Protection |
| High Light: | 624gsm fireproof fiberglass cloth,Alkali Free fiberglass cloth roll,Welding fireproof fiberglass cloth |
||
High-Temperature Resistance Fire Proof Welding Bulk Fiberglass Cloth
Fiberglass Description
HT2025 fiberglass cloth is made of fiberglass fabric and is woven in Plain weave. It is more effective for medium to heavy welding sparks. Its lightweight and heat-treated satin fire blanket are more resistant to the thermal shock of welding sparks than other textured fabrics. The high-strength satin fabric also has a hairless texture to prevent skin irritation.
It has excellent electrical insulation, corrosion resistance, high-temperature resistance, and good resin impregnation.
It is widely used in shipyards, and ship repairs. Oil and gas, petrochemical, and metal construction industries where heat insulation, insulation lining, and extensive welding take place, also can be used as the base material of the coating.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Threads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
Thermal insulation and heat protection
Expansion joints and piping
Features
Service Temperature: 550 degrees celsius.HT800 fiberglass cloth is made of fiberglass fabric and is woven in Plain weave. It is more effective for medium to heavy welding sparks. Its lightweight and heat-treated satin fire blanket is more resistant to the thermal shock of welding sparks than other textured fabrics. The high-strength satin fabric also has a hairless texture to prevent skin irritation.
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

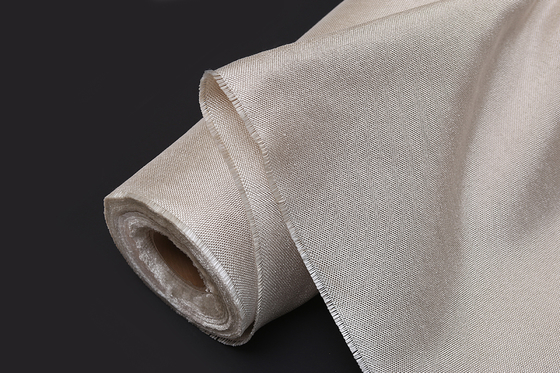

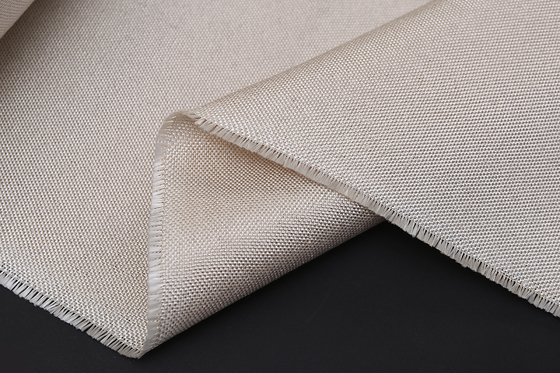

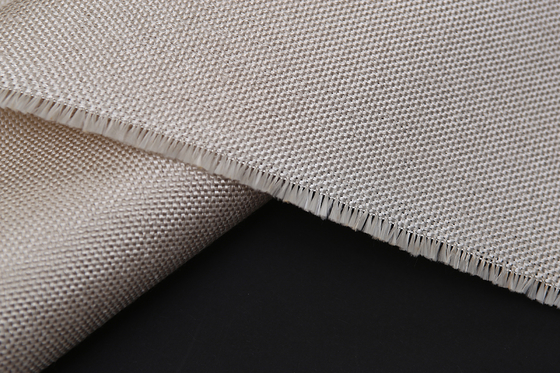

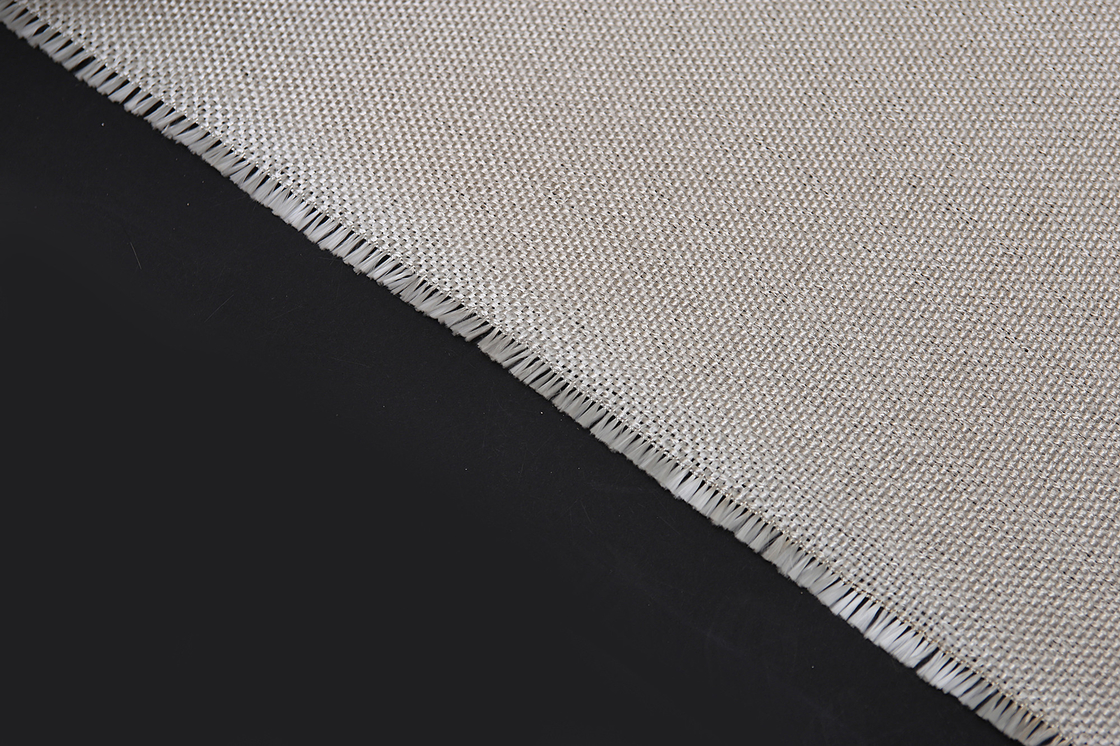

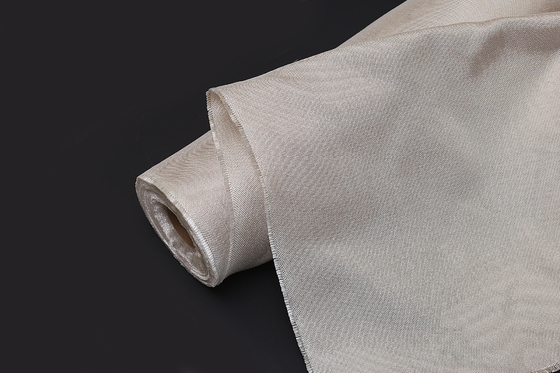

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
