Product Details:
|
| Product Name: | Textured Fireproof Fiberglass Fabric 600g/m2 | Weight: | 624g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Material: | 100% E Fiberglass |
| Good Features: | High Temperature Resistance,low Thermal Conductivity | Color: | White Yellow |
| Main Application: | Thermal Insulation And Heat Protection | ||
| High Light: | Welding Texturized Fiberglass Cloth,0.8mm fireproof fiberglass fabric,White Texturized Fiberglass Cloth |
||
Factory Price High-Temperature Resistance Welding Protection Fireproof Fiberglass Fabric Price
Fiberglass Description
Textured Fiberglass Fabric is weaved of textured fiberglass yarn by a high-speed weaving machine. It possesses not only normal fiberglass fabric excellent properties, like fireproof, heat insulation, and corrosion resistance, but also thicker, softer, and combine better with other materials. This kind of fiberglass fabric is widely used in fire protection, thermal insulation, and the filter industry.
Technique Data Sheets
| Product Name | 2025 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 624gsm | ||
| Yarn Density Treads/cm | Warp Density | 8 | |
| Weft Density | 5.7 | ||
| Yarn Type | Warp | ET6-408 T 430 | |
| Weft | ET6-408 T 430 | ||
| Color | Light Yellow | ||
| Breaking Strength Threads/cm | Warp Density | 2125N | |
| Weft Density | 1820N | ||
Main Application
Application: For Fabrication of Removable/Reusable Insulation Blankets on Turbines, Fittings, Flanges, and Valves, Oil, Water
Color: Tan
Item Name: Fiberglass Cloth
Item Thickness: .030 in
Length: 50 yd
Material: Fiberglass Fabric
Temperature Rating: 1000 deg F
Tensile Strength : 250 lb/in Warp, 200 lb/in Fill
Weight : 17.8 oz/sq-yd
Width : 60 in
Features
Good choices of protection for ordinary welding and cutting.
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

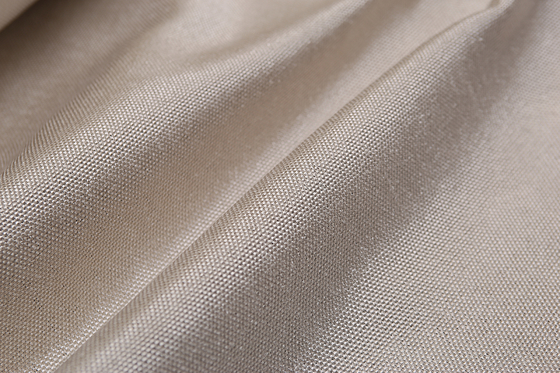

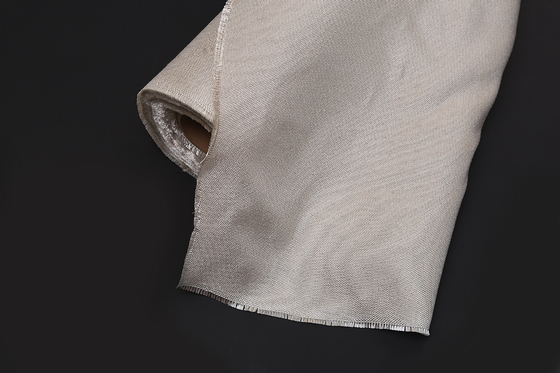

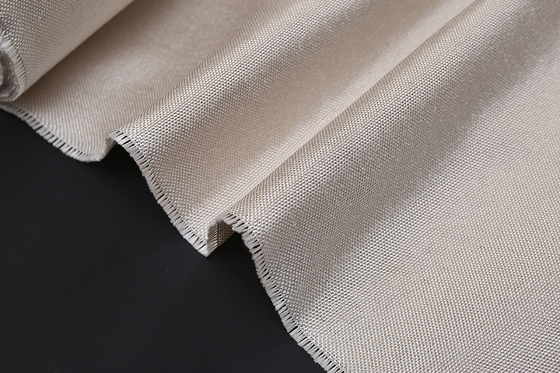

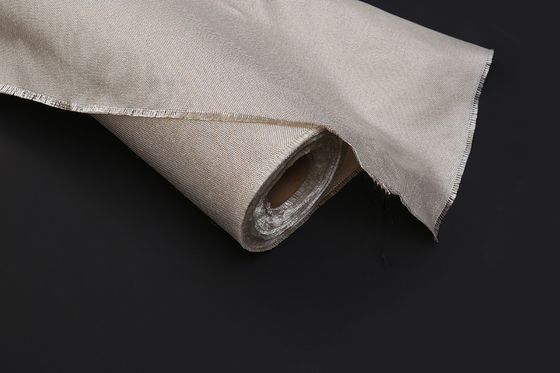

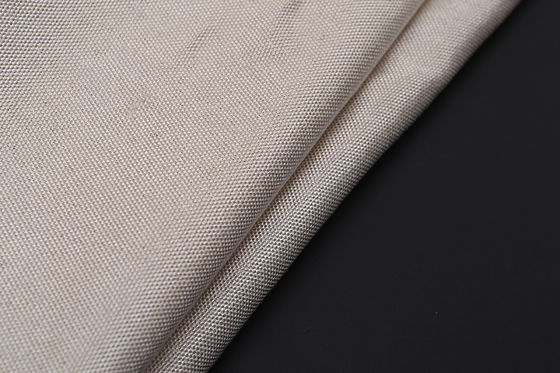

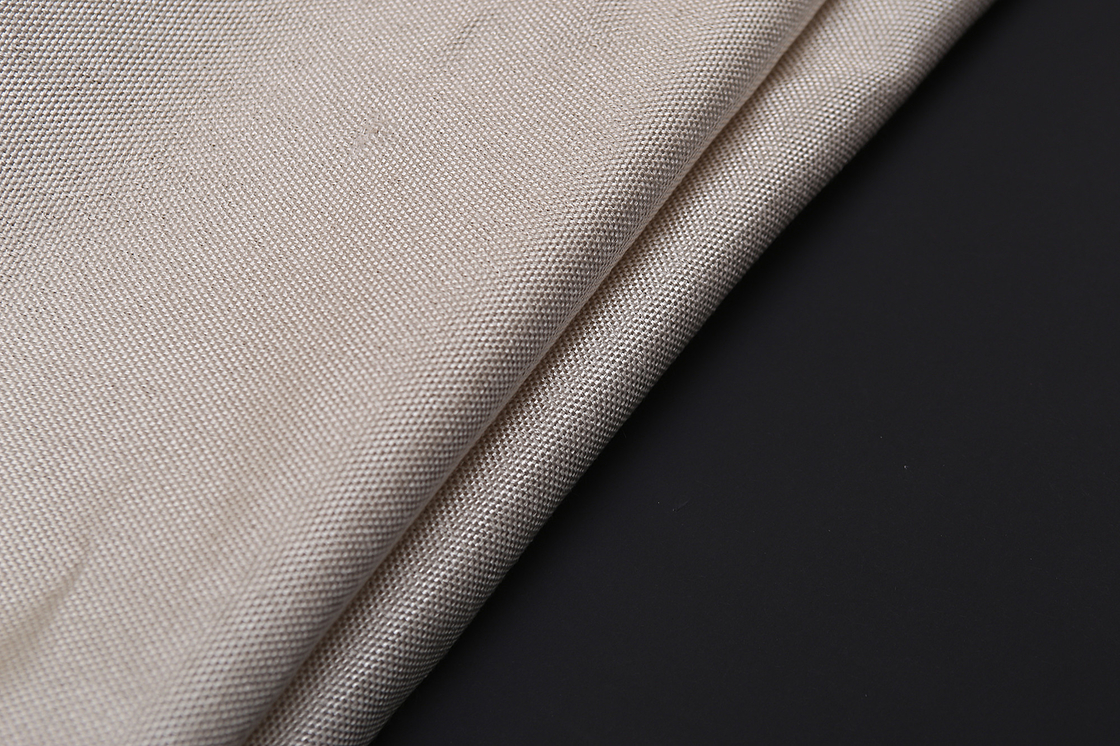

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
