Product Details:
|
| Product Name: | Fiberglass Texturized Yarn (fiberglass Bulked Yarn) | Weight: | 1020g/m2 |
|---|---|---|---|
| Weave Type: | Plain Woven | Material: | 100% E Fiberglass |
| Good Features: | High Temperature Resistance,low Thermal Conductivity | Color: | White |
| Main Application: | Thermal Insulation And Heat Protection | Yarn Density: | 6x3.8 Ends/cm |
| High Light: | NA Heat Treated Fiberglass Cloth,Boiler Insulation Fiberglass Cloth,Heat Treated Fiberglass Cloth 1.6mm |
||
1.6mm Thickness Heat Treated Texturized Fiberglass Fabric Cloth for Boiler Insulation
Fiberglass Description
Fiberglass is a kind of inorganic non-metallic material with excellent performance. It has a wide variety of advantages. The advantages are good insulation, strong heat resistance, good corrosion resistance, and high mechanical strength.
Technique Data Sheets
| Product Name | M30 Texturized Fiberglass Cloth | ||
| Thickness | 0.8mm | ||
| Width | 1000mm | ||
| Length | 50.1m | ||
| Weave Structure | Plain | ||
| Weight | 1020gsm | ||
| Yarn Density Treads/cm | Warp Density | 6 | |
| Weft Density | 3.8 | ||
| Yarn Type | Warp | ET9-816 T 860 | |
| Weft | ET9-1224 T 1250 | ||
| Color | Light Yellow | ||
Main Application
Bulk fiberglass cloth is widely used in steel, electric power, metallurgy, chemical industry, environmental protection, cement and other industries due to its excellent performance. It is suitable for reinforcing materials with high requirements for personal safety protection and mechanical performance, such as the flexible connection of generator sets, boilers, and chimneys, thermal insulation of machine rooms, and production of fire curtains. It is used for exhaust, ventilation, ventilation, pipeline compensation function of flue gas treatment system, coating base fabrics, boiler insulation, pipeline binding, etc.
Features
1. It can be used between low temperature - 70 ºC and high temperature of 1000 ºC, and can withstand instantaneous high temperature.
2. Resistant to ozone, oxygen, light, and weather aging.
3. High strength, high modulus, low shrinkage, and no deformation.
4. Noninflammability, Good heat insulation performance
5. When the temperature exceeds the working temperature, it still has a certain residual strength.
6. Corrosion resistance.
Relation Texturized Fiberglass Cloth
| Product Code | Weight ±5% | Thickness | ||
g/m² |
Oz/rd² | mm | Inch | |
| 84215 | 290 | 8.5 | 0.4 | 0.02 |
| 2025 | 580 | 17.0 | 0.8 | 0.13 |
| 2626 | 950 | 27.8 | 1.0 | 0.16 |
| M24 | 810 | 24.0 | 0.8 | 0.13 |
| M30 | 1020 | 30.0 | 1.2 | 0.20 |
| M70 | 2000 | 60.0 | 2.0 | 0.33 |

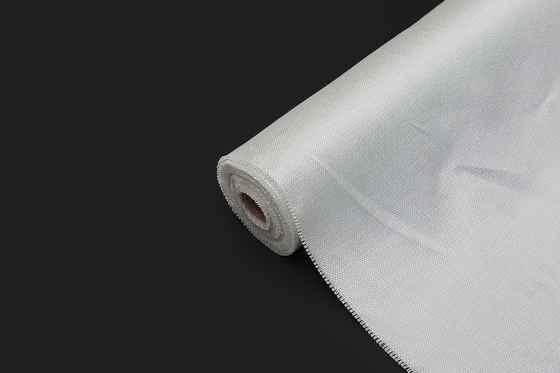

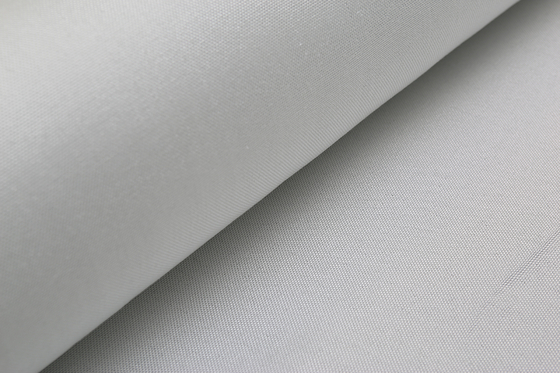

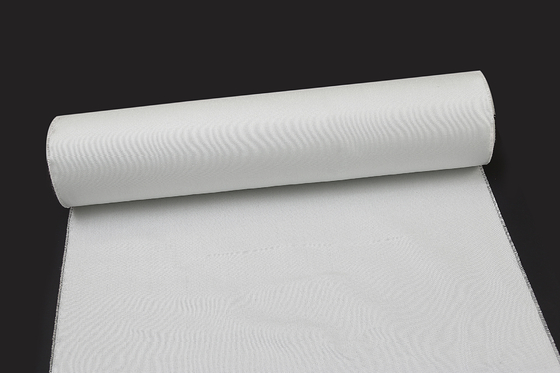

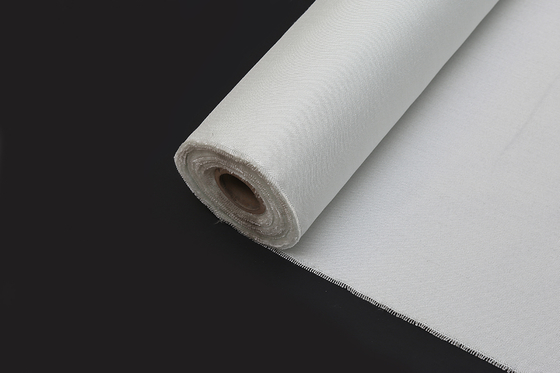

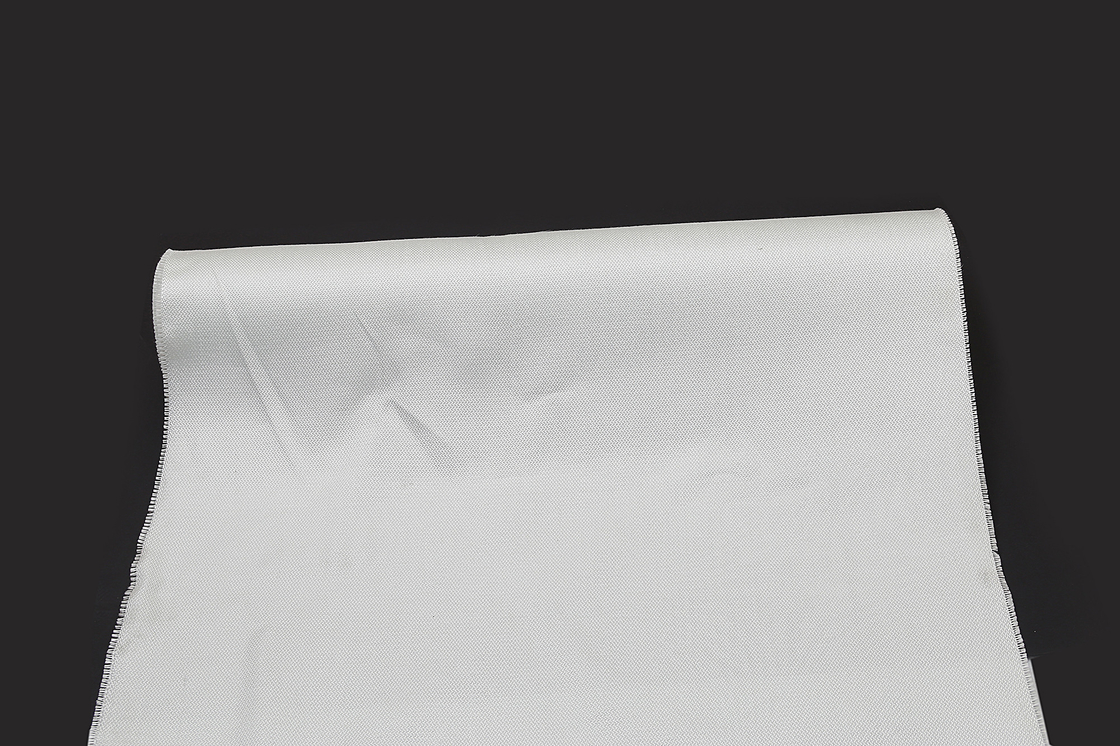

Detail Product Images
Packing
Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
