Product Details:
|
| Features: | High Temperature Resistance, Good Flame Retardant Ability | Product Name: | High Silica Fiberglass Cloth |
|---|---|---|---|
| Material: | High Silica Fiberglass Yarn | Treatment: | Acid Treated |
| Temperature Resistance /Working Temperature: | 1000℃ | Color: | Brown |
| Weight: | 600gsm | Application: | Welding And Molten Metal Splash Protection, Heat And Flame Shielding |
| High Light: | 1200g High Temp Fiberglass Cloth,600gsm heat resistant fiberglass cloth,Silca High Temp Fiberglass Cloth |
||

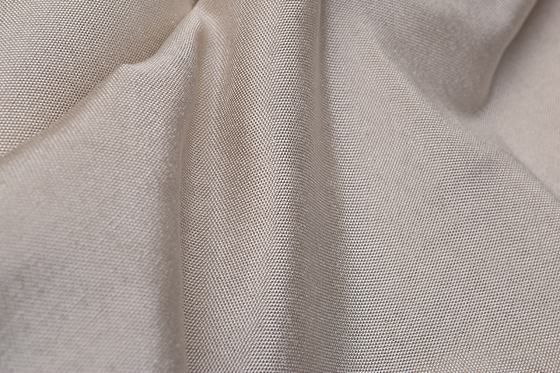

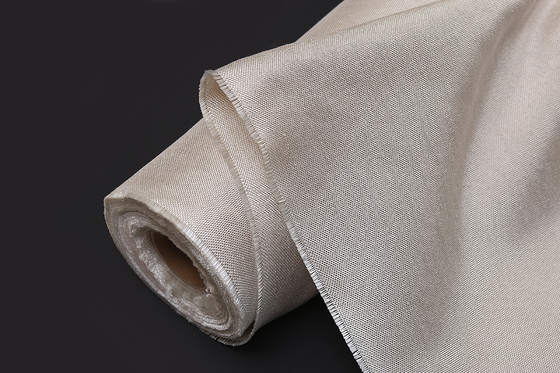

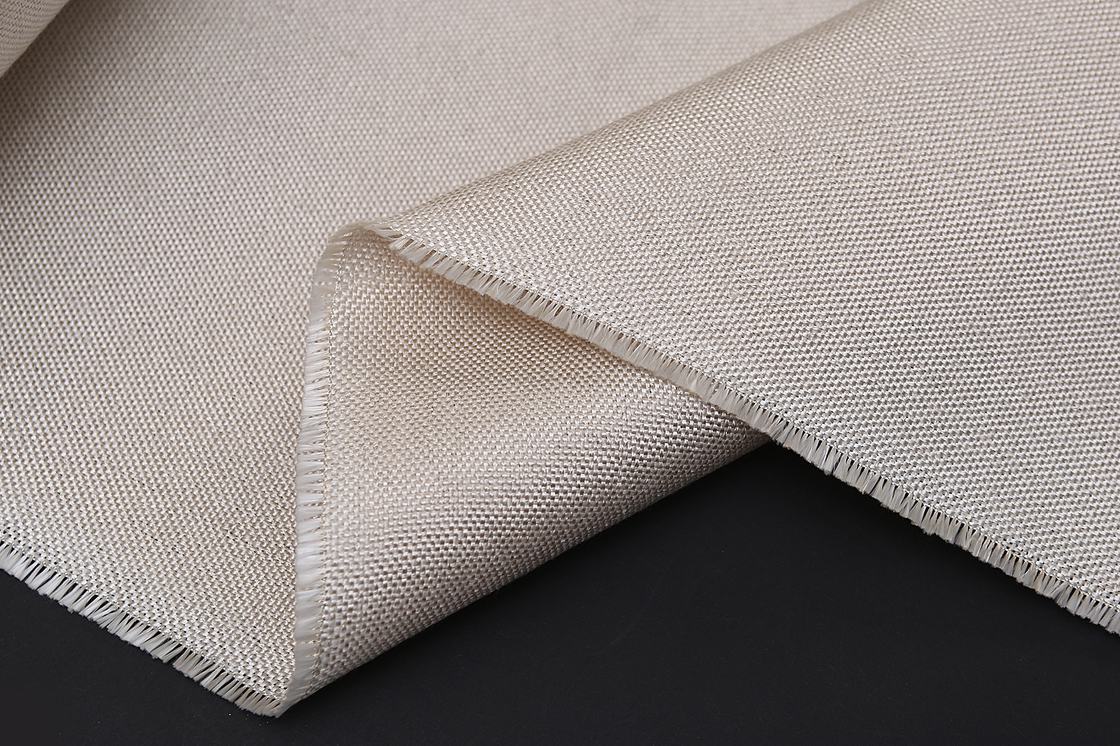

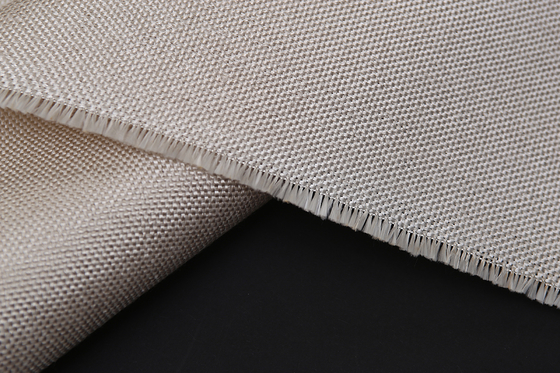

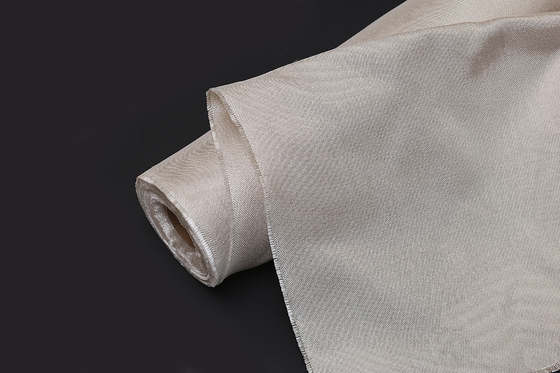

1200g Silca High-Temperature Fiberglass Cloth 12H Satin For Welding Protection Blanket
1. Product Introduction
High silicon fabrics are generally made into welding blankets, curtains, pads, jackets, or covers for furnace insulation, steam turbine insulation, engine exhaust, and sound insulation, high-temperature expansion joints or compensators for flange joints, steam valve insulation, Insulation and protection of metalworking, shipbuilding and heavy machinery industries, nuclear equipment and cables, and thermal ablative materials for aerospace.
2. Technique Data Sheets
|
Item |
Technical Requirement |
Test Result |
|
Width(mm) |
1000±10 |
1002 |
|
Weave Style |
8HS Satin |
8HS Satin |
|
Warp Counts (ends/cm) |
≥18 |
19 |
|
Fill Count |
≥13 |
14 |
|
Warp Breaking Strength (N/Inch) |
≥ 800 |
965 |
|
Weft Breaking Strength (N/Inch) |
≥ 500 |
643 |
|
Weight (g/m2) |
600± 30 |
616.67 |
|
Length (m) |
50.0 |
50.0 |
|
Thickness |
0.7 ± 0.1 |
0.724 |
|
Silica Content % |
≥ 96 |
97.8 |
|
Linear Shrinkage% |
5-10 |
5.2 |
|
Working Temperature |
1200 ℃ |
1200 ℃ |
|
Coating Pu |
0.8-1% |
0.86% |
3. Advantages
Insulation jackets, covers, mattress
Fabric expansion joints
Fabric ductwork connector
Fire doors & Fire curtains
Welding/fire blankets
Other fire control systems
4. Properties
Good performance in a high-temperature environment can be used as a fire curtain, welding blanket, removable heat insulation kit, or mat.
High temperature resistant;
High tensile strength;
Low thermal conductivity;
Low smoke emission.
5. Much More Related Products
| Product Name | Widths | Working Temperature | Weight g/m2 | SiO2 CONTENT |
| High Silica Cloth | 92 -100cm | 1000oC | 300 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 450 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 612 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 880 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 1100 | >96% |
| Medium Silica Cloth | 92 -100cm | 750oC | 600 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 700 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 1100 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 1200 | >70% |
6. Storage and Packing
7. Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
8. RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
