Product Details:
|
| Features: | High Temperature Resistance, Good Flame Retardant Ability | Product Name: | High Silica Fiberglass Cloth |
|---|---|---|---|
| Material: | High Silica Fiberglass Yarn | Treatment: | Acid Treated |
| Temperature Resistance /Working Temperature: | 1000℃ | Color: | Bron |
| Weight: | 600gsm | Application: | Welding And Molten Metal Splash Protection, Heat And Flame Shielding |
| High Light: | 1000 C High Silica Fiberglass Cloth,Brown High Silica Cloth,High Silica Fiberglass Cloth 0.7mm |
||

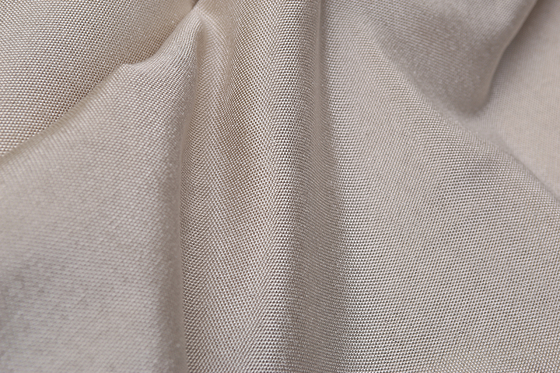

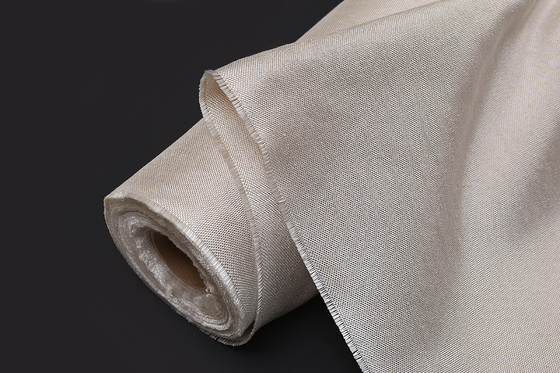

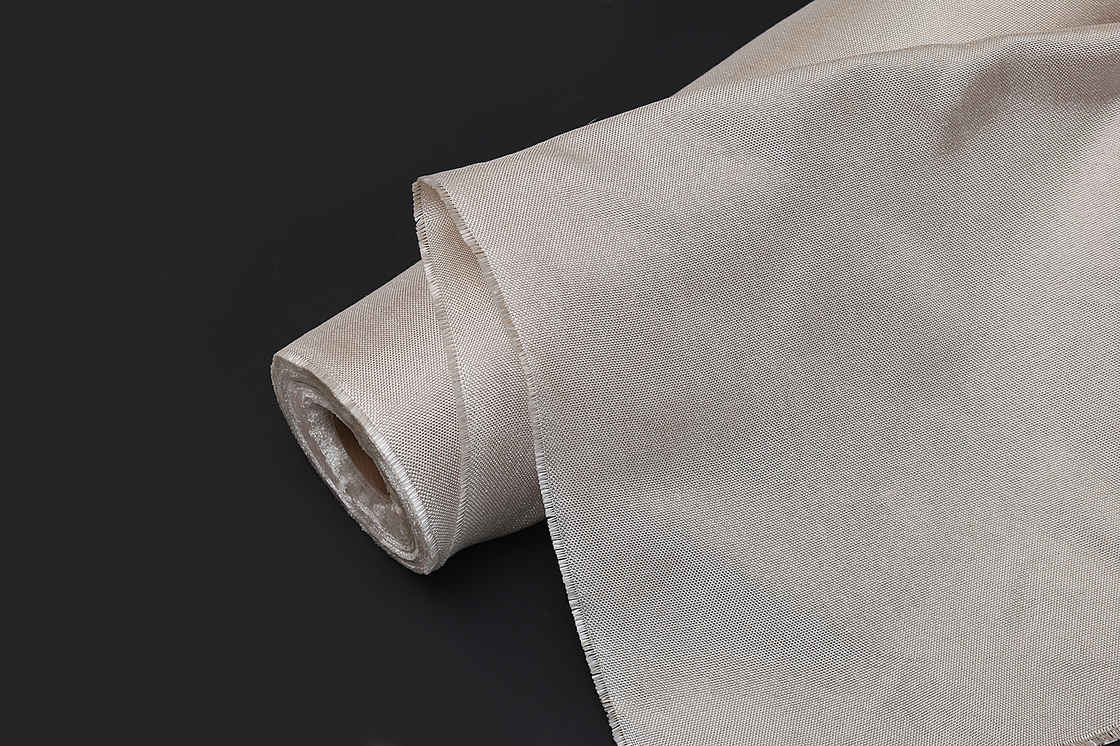

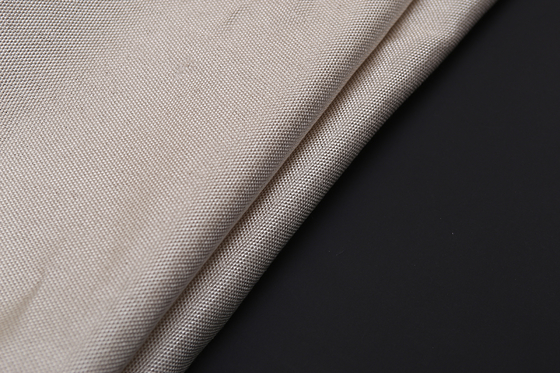

1000℃ Highly Heat Resistant Silica Fabric 0.7mm Brown High Silica Cloth Satin Weave
1. Product Introduction
High silica is made of silica fiberglass that contents more than 96% of SiO2. It is a kind of heat-resistant and soft inorganic fiber. The material has excellent heat-resistant characteristics, the softening point is close to 1700 ° C, long time service temperature at 900 ° C, it can work for 10 minutes at 1450 ° C, and keep well at 1600 ° C for 15 seconds. It also performs an outstanding capability of high strength, easy processing, thermal insulation and ablation resistance.
2. Technique Data Sheets
|
Item |
Technical Requirement |
Test Result |
|
Width(mm) |
1000±10 |
1002 |
|
Weave Style |
8HS Satin |
8HS Satin |
|
Warp Counts (ends/cm) |
≥18 |
19 |
|
Fill Count |
≥13 |
14 |
|
Warp Breaking Strength (N/Inch) |
≥ 800 |
965 |
|
Weft Breaking Strength (N/Inch) |
≥ 500 |
643 |
|
Weight (g/m2) |
600± 30 |
616.67 |
|
Length (m) |
50.0 |
50.0 |
|
Thickness |
0.7 ± 0.1 |
0.724 |
|
Silica Content % |
≥ 96 |
97.8 |
|
Linear Shrinkage% |
5-10 |
5.2 |
|
Working Temperature |
1200 ℃ |
1200 ℃ |
|
Coating Pu |
0.8-1% |
0.86% |
3. Application
Welding Blankets, Curtains
Heat and Flange Shielding
Stress Relief
Gasket, Seal
Hose and Cable Protection
Protective Garments
4. Properties
Good performance in a high-temperature environment can be used as a fire curtain, welding blanket, removable heat insulation kit, or mat.
High temperature resistant;
High tensile strength;
Low thermal conductivity;
Low smoke emission.
5. Much More Related Products
| Product Name | Widths | Working Temperature | Weight g/m2 | SiO2 CONTENT |
| High Silica Cloth | 92 -100cm | 1000oC | 300 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 450 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 612 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 880 | >96% |
| High Silica Cloth | 92 -100cm | 1000oC | 1100 | >96% |
| Medium Silica Cloth | 92 -100cm | 750oC | 600 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 700 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 1100 | >70% |
| Medium Silica Cloth | 92 -100cm | 750oC | 1200 | >70% |
6. Storage and Packing
7. Why Choose Us?
Your inquiry will be replied to within 24 hours
Well-trained and experienced staff to answer all your inquiries.
All our products have 1-year warranties.
Competitive prices based on the same quality.
Guarantee sample quality same as mass production quality.
8. RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third-party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to provide basic cloth
