Product Details:
|
| Product Name: | Fiberglass Rope Seal | Roll Length: | 20 Meters |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Raw Material: | 9um E-glass,red Silicone Rubber |
| Working Temperature: | -65 Degree C To 500 Degree C | Breakdown Voltage: | 10 KV To 15 KV |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Pipe Protection |
| High Light: | Heat Resistant Silicone Rubber Fiberglass Sleeving,High Temperature Fire Sleeves,OEM Silicone Rubber Fiberglass Sleeving |
||

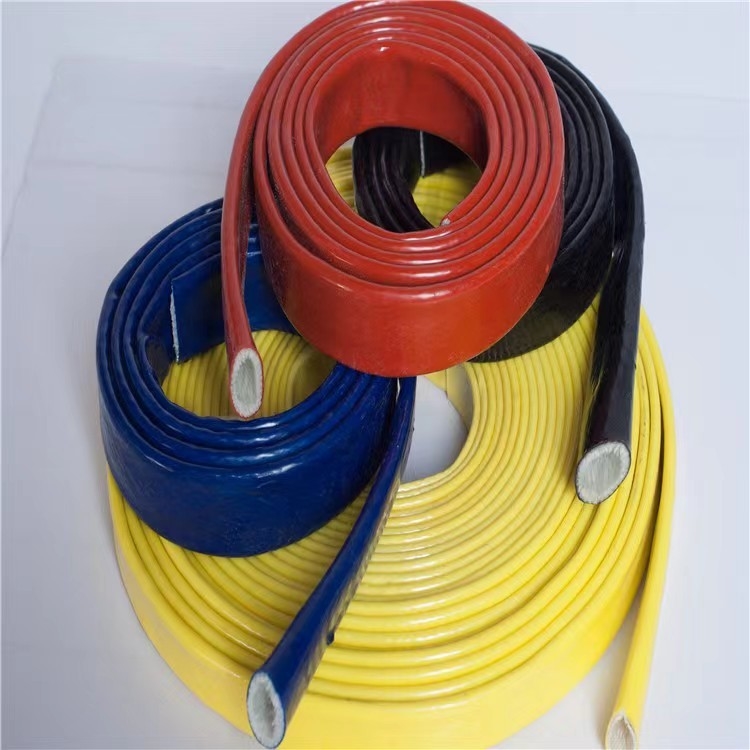

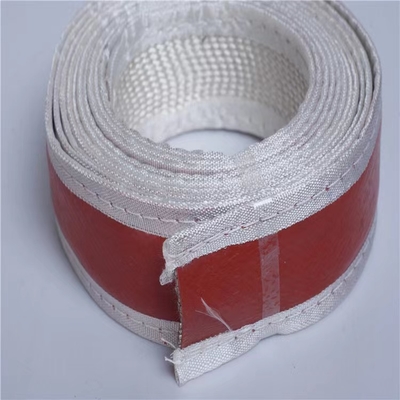

Heat Resistant Silicone Rubber Fiberglass Sleeving, High-Temperature Fire Sleeves
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Silicone Rubber Coated Fiberglass Sleeves are silicone coated for flexibility.
Fire Sleeves are designed to protect hoses, wires, and cables from high temperatures and occasional direct flames. Working temperature: -65°C~500°C (can work at 165°C for 15~30 seconds).
Made from high-quality fiberglass yarns woven in a flexible substrate, then coated with high-grade, fully cured silicone rubber. Resistant to hydraulic oils, lubricating oils, and fuels, the fire protection sleeve prevents energy loss in pipes and hoses, protects employees from burns, and provides flame and melt splash protection for wires, hoses, and cables.
Fire Sleeves feature braided inner fiberglass sleeves that provide the highest level of protection in critical areas that may be exposed to severe fire conditions, such as oil lines in engine compartments. In addition to meeting the requirements for aerospace applications, braided fire protection sleeves are commonly used in the automotive, marine, locomotive, heavy equipment, and petrochemical industries.
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
Superior Electrical Properties.
Good Expandability and Flexibility.
Chemical Resistance.
Extreme Abrasion Resistance.
Oil Resistance.
Self Extinguishable.
Application:
Mainly used in steel plants, smelters, glass, and other thermal places to protect the hose, hose assemblies and cables. It also helps maintain line temperature and reduce environmental overheating and overcooling.
Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)
Metals, Iron & Steel
Oil & Gas
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
