Product Details:
|
| Product Name: | Silicone Rubber Coated Fiberglass Sleeving | Roll Length: | 20 Meters Or Customized |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Breakdown Voltage: | 10 KV To 15 KV |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Pipe Protection |
| High Light: | High Temperature Silicone Rubber Fiberglass Sleeving,Pipe Protection cable insulation sleeve,Wires Silicone Rubber Fiberglass Sleeving |
||

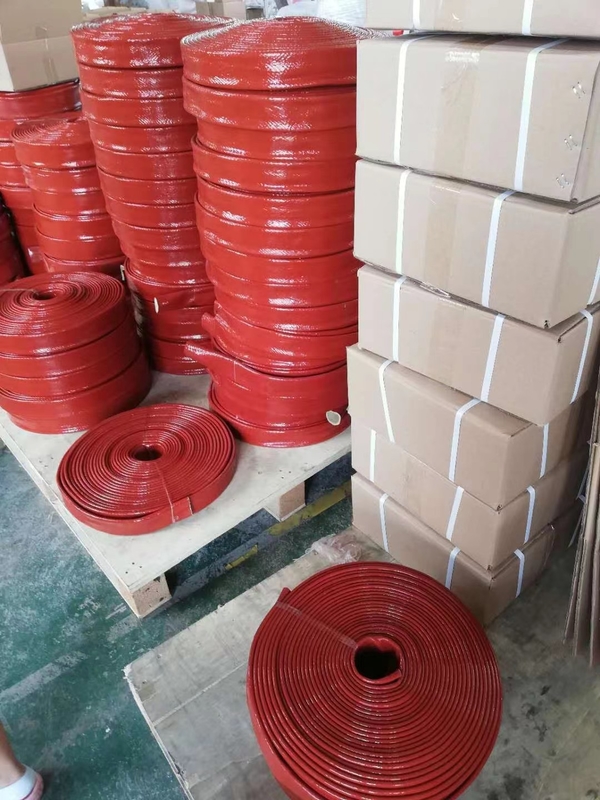

High-Temperature Silicone Rubber Fiberglass Sleeving
Description for High-Temperature Silicone Rubber Fiberglass Sleeving

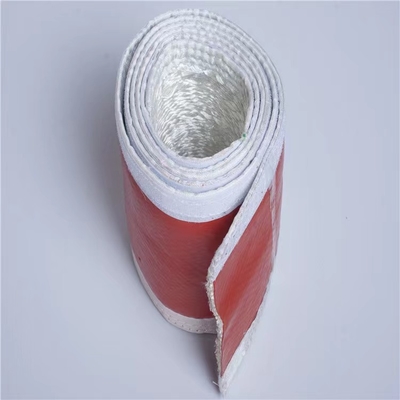

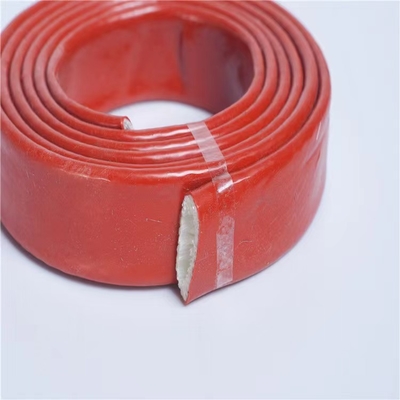

Silicone Flex Glass sleeving is engineered with a silicone rubber coating over an insulating fiberglass sleeve. SG is very abrasion resistant and is ideal in heavy-duty applications that require outstanding mechanical and electrical properties.
The mechanical properties and high dielectric strength of the Silicone Coated Sleeve make it the first choice in applications such as transformer lead protection, motor coil leads, component isolation, and power supply wiring.
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
Silicone Coated Rubber Sleeve has high tear strength, a slight expansion for easy installation, excellent flex life, and fatigue resistance. The operating temperature range is –103°F to 428°F.
Application:
Mainly used in steel plants, smelters, glass, and other thermal places to protect the hose, hose assemblies, and cables. It also helps maintain line temperature and reduce environmental overheating and overcooling.
Transportation (Aerospace, Auto, Locomotive, Heavy Equipment)
Generally used in electrical and electronic wiring, lighting, industrial machinery, electric products, and other places of high temperature
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
