Product Details:
|
| Product Name: | Silicone Cable Sleeve | Roll Length: | 20 Meters Or Customized |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Breakdown Voltage: | 10 KV To 15 KV |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Pipe Protection |
| High Light: | Fireproof Silicone Rubber Fiberglass Sleeving,Red high temperature fiberglass sleeve,SGS Silicone Rubber Fiberglass Sleeving |
||

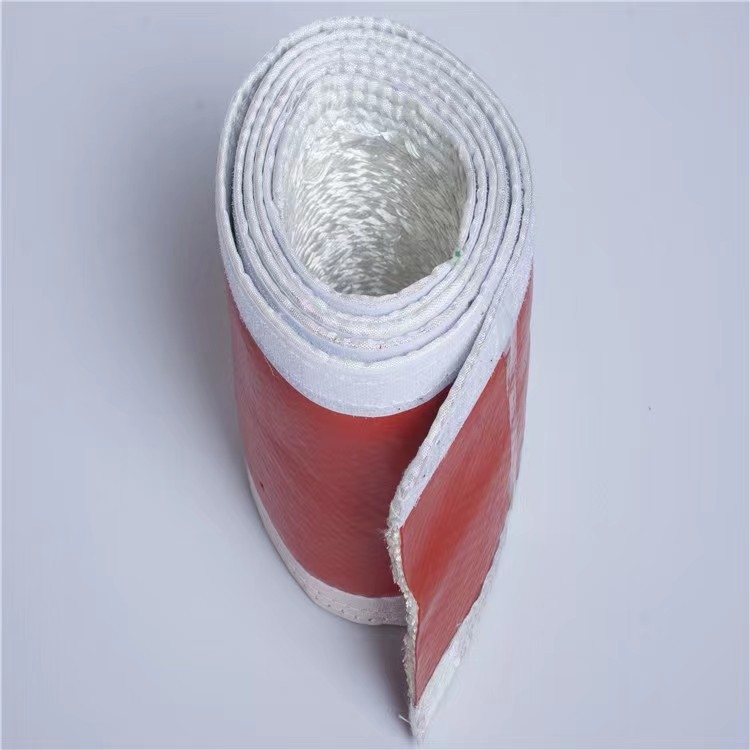

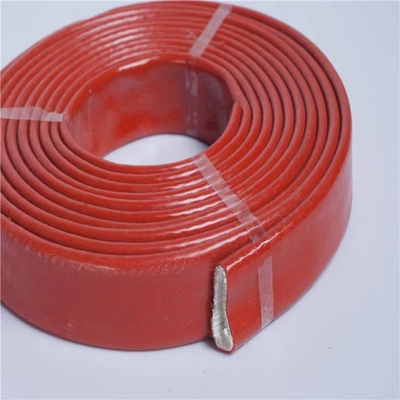

Red Color Silicone Rubber Fiberglass Sleeving Heat-Insulation Protection Of Industrial Hoses
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Silicone Rubber Coated Sleeving is made of braided fiberglass material that is coated in silicone rubber. This combination creates an extremely flexible and strong sleeving material that is ideal for many different applications. Common uses for Silicone Rubber Coated Sleeving can be found in appliances, motors, and generators. This type of sleeving is often seen in industries such as automotive, marine, aircraft, electrical, and more. This type of sleeving is beneficial in all applications where the material is exposed to very high or low temperatures, heavy-duty work, high altitude, as well as applications where conformity is necessary.
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
1. Impede heat radiation of flame Sheds molten spatter of metals and glass
2. Resistant to slag and resin build-up, Protects against abrasion, solvents, and corrosive chemicals
3. Protect operators against scorching contacts of metal hoses and pipes
4. Impede heat lost and favor to saving energy
5. No harmful by-products of combustion
Application:
Firesleeve (sometimes spelled Fire-sleeve or Fire-sleeve) is perfect for protecting industrial hydraulic hoses and lines, pneumatic lines, fuel and oil lines, brake lines, wires, and cables from heat and extreme heat conditions choose. The extra-thick special formulation of silicone rubber sheds molten metal, slag, welding splatter, electrical or grinding sparks, and contaminants. Firesleeve also offers ozone, UV, and abrasion protection.
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
