Product Details:
|
| Product Name: | Silicone Cable Sleeve | Roll Length: | 20 Meters Or Customized |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Breakdown Voltage: | 10 KV To 15 KV |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Pipe Protection |
| High Light: | Automobile Silicone Rubber Coated Fiberglass Sleeve,High Temp fiberglass sleeve,Electrical Silicone Rubber Coated Fiberglass Sleeve |
||

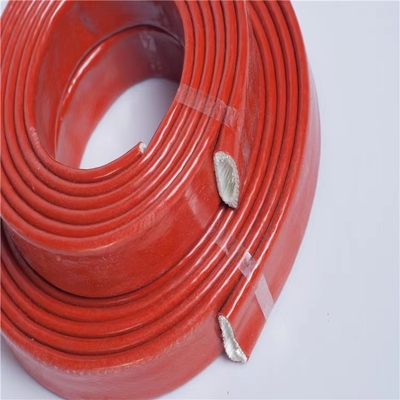

Silicone Rubber Coated Fiberglass Sleeving mainly used for Automobile and Electrical
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Silicone Rubber Coated Fiberglass Sleeving made of fiberglass fiber and coated with silicone resin. With good flexibility, insulation, and chemical resistance, self-extinguishing.
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
1. Class H (200°C) insulating material.
2. Grade A up to 7 kV, grade B up to 4 kV
3. Light, soft and flexible
4. Available in different sizes
5. Resists corrosion
6. Anti-aging protective
7. Chemical resistance
8. Self-extinguishing

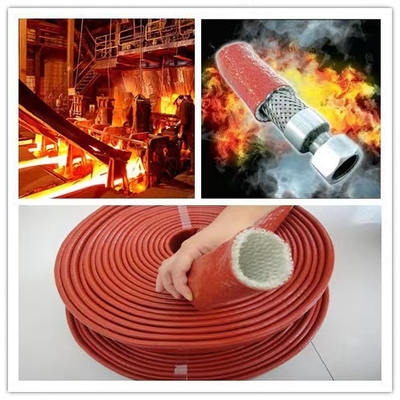

Application:
The mechanical properties and strength of Silicone coated fiberglass make it a great choice in applications such as:
1. Transformer lead protection
2. Motor coil leads
3. Component isolation
4. Power supply wiring
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
