Product Details:
|
| Product Name: | Silicone Rubber Coated Fiberglass Sleeving | Roll Length: | 20 Meters Or Customized |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Thickness: | 2.2mm |

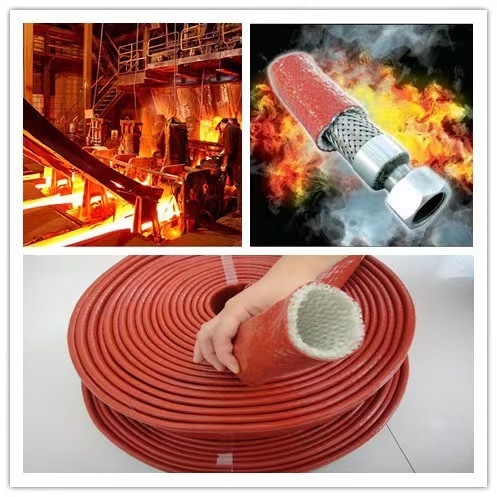

| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | Silicone Rubber Coated Fiberglass Sleeving,silicone rubber cable sleeve 2.2mm,Flame Resistance Coated Fiberglass Sleeving |
||

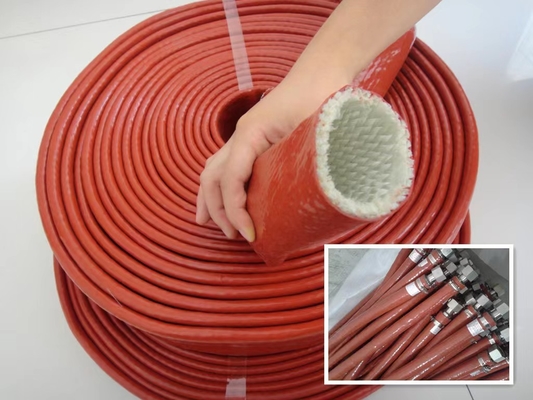

Silicone Rubber Coated Fiberglass Sleeving Heat-Insulation And Flame-Resistance
Description for High-Temperature Silicone Rubber Fiberglass Sleeving

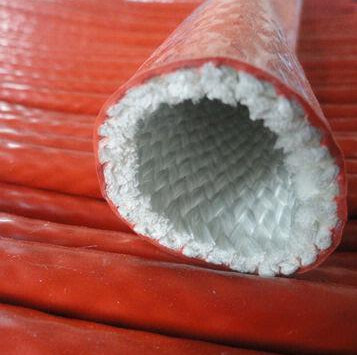

It consists of specially formulated high-temperature silicone rubber extruded over a premium electrical grade braided fiberglass sleeve. The extrusion process produces a denser, more uniform coating with better concentricity and longer continuous lengths than typical liquid-impregnated products commonly found in the industry.
| Sleeve material | Fiberglass fiber |
| Coated material | Silicone rubber |
| Working Temperature | -50℃ to 200℃ |
| Temperature endurance | 265℃+(-)2℃ |
| Aging Test | 6 hours without crackle |
| Cold bend | Without crackle |
| Voltage Rating | 4.0KV,7.0KV |
| Flammability | VW-1 |
| Standard Color | White, Black |
| Colored | Available |
| Certification | UL, ROHS,Reach |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
Thermal: acceptable for continuous service from -70°C through 200°C. Operation at temperatures up to 315°C is tolerated for short durations.
It is resistant to moisture, corona, ozone, radiation, compression set, fungus, most chemicals and solvents, weathering, flexure fatigue and heat degradation.
Application:
It is used for the insulation of leads and connections in electrical and electronic components ( transformers, coils, relays, solenoids, etc.) where temperature extremes from -70°C through 200°C are encountered. Silicone rubber-coated glass sleeving is the only flexible insulating material that remains useful for continuous service in ambient temperatures from -70°C through +200°C.
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
