Product Details:
|
| Product Name: | Heat Resistant Hose And Cable Protective Pyrojacket Fire Sleeve | Size: | 6-150mm |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Name: | Hose Fire Sleeve |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | High Temp Braided Fiberglass Sleeving,6mm Insulation Fire Retardant Sleeve,Silicone Rubber Braided Fiberglass Sleeving |
||

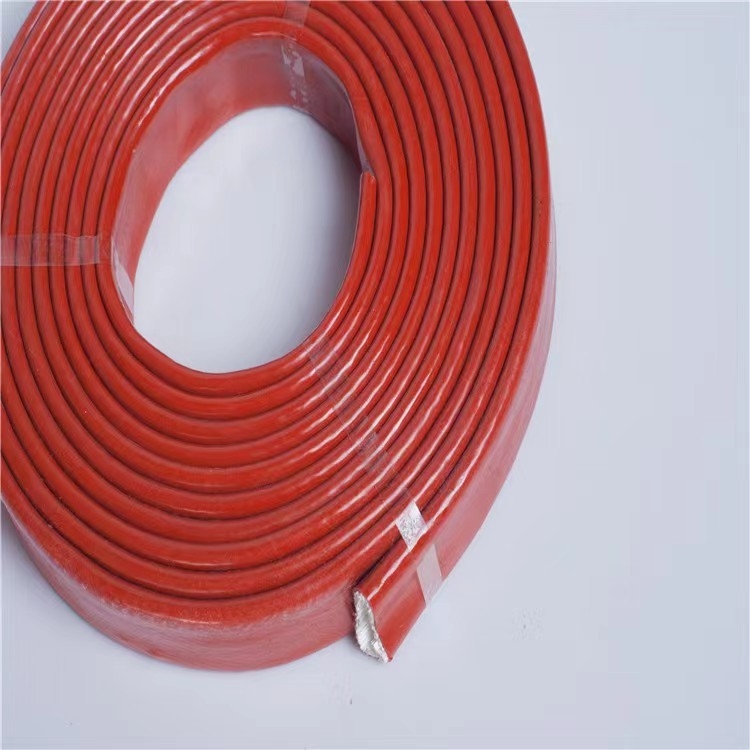

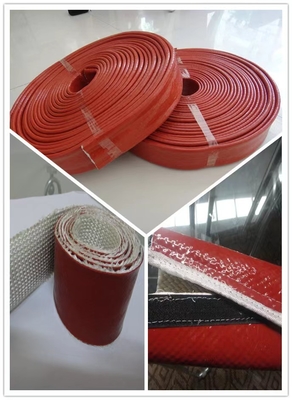

High-Temperature Protection Glass Fiber Braided with Silicone Rubber Coated Hose Insulation Fire Retardant Sleeve
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
The extra thick special formulation of silicone rubber on our fire sleeve sheds molten metals, slag, welding splatter, electrical or grinding sparks, and contamination. Firesleeve also provides protection from ozone, UV, and abrasion.
The standard color of fire sleeve is red-oxide, but custom colors such as blue, grey, black, yellow, and green are available; great for identifying hose and cable use when the sleeve is installed. Firesleeve is the standard high-temperature and molten splash pyro protection jacket and sleeve for hose & cable.
| Sleeve material | Fiberglass fiber |
| Coated material | Silicone rubber |
| Working Temperature | -50℃ to 200℃ |
| Temperature endurance | 265℃+(-)2℃ |
| Aging Test | 6 hours without crackle |
| Cold bend | Without crackle |
| Voltage Rating | 4.0KV,7.0KV |
| Flammability | VW-1 |
| Standard Color | White, Black |
| Colored | Available |
| Certification | UL, ROHS,Reach |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
1) Self-extinguishing thick-walled insulating sleeve for excellent thermal protection
2) Sheds molten metal splash instantly and resists direct flame impingement
Lightweight and highly flexible composite protective sleeve with exceptional elasticity
3) Will not melt, burn, support combustion, or emit toxic smoke
4) Resistant to hydraulic fluids, fuels, lubricating oil, and water
5) Extends service life of assemblies and provides personnel protection
Application:
Industrial hydraulic hoses and lines, pneumatic lines, fuel & oil lines, brake lines, wires and cables from exposure to high temperature, heat, flame, fire, and pyro exposure
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
