Product Details:
|
| Product Name: | Heat Resistant Hose And Cable Protective Pyrojacket Fire Sleeve | Size: | 6-150mm |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Name: | Hose Fire Sleeve |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | 6mm Silicone Rubber Fiberglass Sleeving,Fireproof high temp wire insulation sleeve,500C Silicone Rubber Fiberglass Sleeving |
||
6mm Silicone Rubber Coated Fireproof Fiber Glass Sleeving Used For Heat Resistance
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
Economic Silicone Rubber Fiberglass Braided Fire Sleeve is constructed from a high bulk glass fiber braided sleeve. Excellent modulus of elasticity makes it an excellent choice for bundling hoses, tubes, and cables in a variety of hostile environments. Protect your personnel and cut your energy loss economic Grade Fire Sleeve is insulation properties that provide personnel with effective protection against burns from hot hoses and flexible steam lines while reducing heat energy losses. Always wear safety glasses, dust mask, gloves, and long sleeves are recommended when handling this product
| PRODUCT PROFILE | |
| Continuous Operating Temperature | 260°C/500°F |
| Temperature endurance | 500°C |
| Off-self time | 10 s |
| Horizontal flame test | ≤ the 30S |
| Max short term exposure | 1300°C |
| Design-Build | Braided fiberglass substrated coated with silicone rubber |
| Reactions | Resists most acids & water Unaffected by solvents & fire |
| Design Capabilities | Excellent thermal protection; very flexible; custom silicone thickness available |
| Size/Size Range | 10 mm -- 100mm |
| Breakdown Voltage | When normal condition alternating current 50HZ, can reach 10,000V~12,000V |
| Nominal Wall Thickness | 1mm -- 5mm (1/25" -- 1/5 ") |
| Flexibility | Outstanding |
| Durability | Outstanding |
| Color | Custom colors are available by special order.(Red/Black/Sliver) |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
1. Impede heat radiation of flame and sheds molten spatter of metals and glass.
2. Resistant to slag and resin build-up, protects against abrasion, solvents, and corrosive chemicals.
3. Protect the operator from burning the hot pipe.
4. Moisture-proof, waterproof, resistant to oil and pollution. 5. Impede heat lost and favor to saving energy.
Application:
1, widely used in steelworks, smelting plants, glassworks, rail transit, and another high-temperature environment.
2, Applied to the hydraulic hose, cable, metal hose, corrugated tubing, and all kinds of pipeline for high-temperature protection.

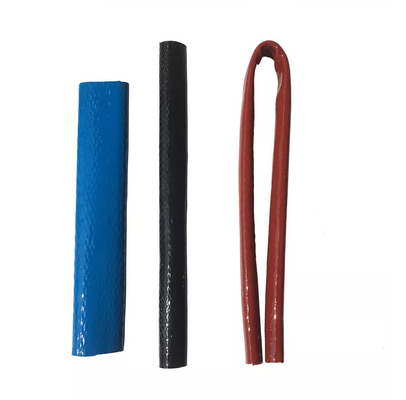

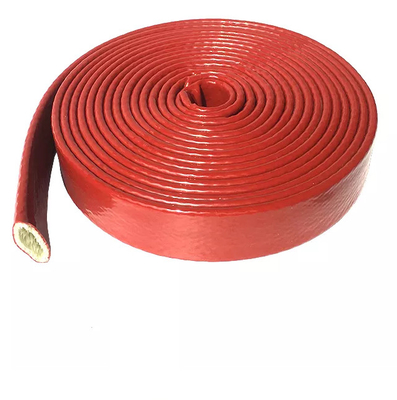

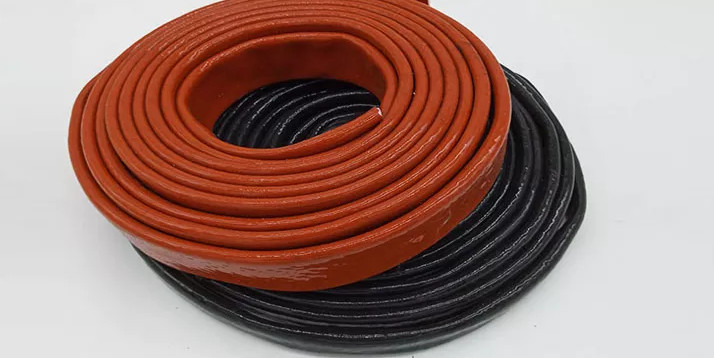

Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
