Product Details:
|
| Product Name: | Heat Resistant Hose And Cable Protective Pyrojacket Fire Sleeve | Size: | 6-150mm |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Name: | Hose Fire Sleeve |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | Heat Shield Fire Sleeve Silicone Coated,Heat Insulation Fire Sleeve,Fiberglass Heat Shield Fire Sleeve |
||
Silicone Coated Fiberglass Heat Insulation Heat Shield Silicone Fire Sleeve
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
The fire sleeve is the perfect cover to protect hydraulic hoses, oil lines, and wiring bundles. It is made of braided fiberglass yarns in a flexible substrate, it is then coated with high-quality silicone rubber. Resistant to hydraulic fluids, lubricating oils, and fuels. The fire sleeve is designed to protect hoses, wires, and cables from the hazards of high heat and occasional flame. The Fire Sleeve protects continuously to 260℃/500℉ and will withstand a molten splash at 1300℃.
| Inner diameter | 10mm-115mm |
| Color | Red, black, other colors can be made according to customer's need, nylon fastening optional color: white or black |
| Work temperature | Can used continuously at - 75 ° C to 260 ° C, short moment resistance can be up to 1650 ° C |
| Nominal voltage | 7kv--25 kv. |
| Product properties | Fire prevention, flame retardant, heat insulation, insulation, anti-aging, prevent splas |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
1, Fireproof, flame retardant, heat insulation.
2, Heat prevention, insulation, anti-aging
3, Withstand melting metal splash
4, Withstand strong heat source and flame.
5, Anti-acid and anti-alkali
Application:
It also provides a high degree of insulation value, protecting hot, cold or cryogenic lines, pipes and tubing from heat or cold loss, providing energy savings and abrasion resistance

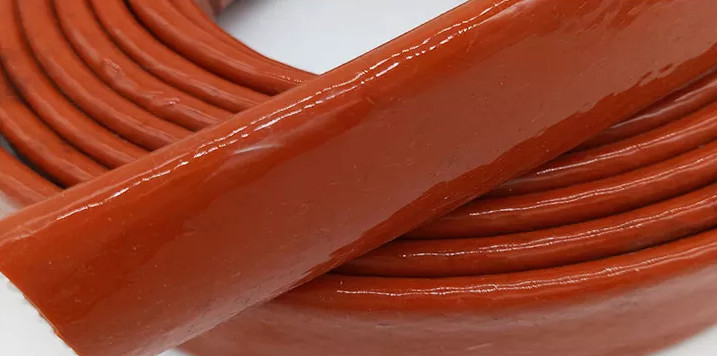

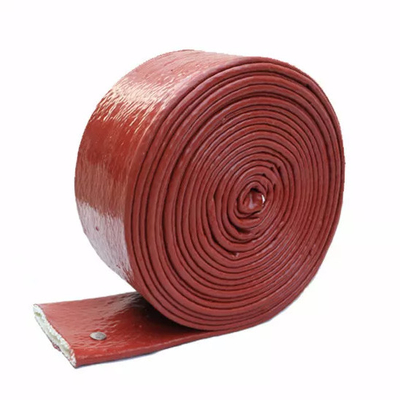

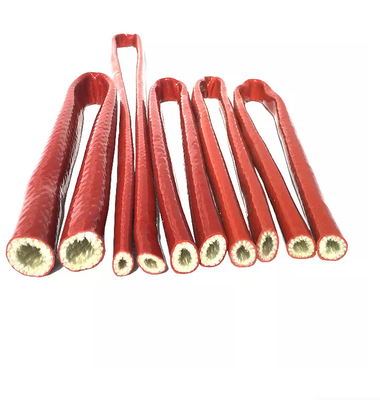

Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
