Product Details:
|
| Product Name: | Heat Resistant Hose And Cable Protective Pyrojacket Fire Sleeve | Size: | 6-150mm |
|---|---|---|---|
| Performance: | Fire-proof And High Temperature | Aging Test: | 260ºC,6 Hrs Without Crackle |
| Continuous Operating Temperature: | -10ºC+200ºC | Name: | Hose Fire Sleeve |
| Application: | Used To Protect Hoses, Wires And Cables | Flammability: | Impede Heat Radiation Of Flame |
| High Light: | Fire Resistance Heat Resistant Sleeve,Silicone Rubber Coated Fire Sleeve,Fireproof Heat Resistant Sleeve |
||
Fire Resistance /Fireproof/heat Resistant Sleeve Fiberglass Silicone Rubber Coated Fire Sleeve
Description for High-Temperature Silicone Rubber Fiberglass Sleeving
We coat an extra thick special formulation of silicone rubber on our texturized fiberglass sleeves. It can protect industrial hoses and lines from molten metals, slag, welding splatter, electrical or grinding sparks, and contamination. It also provides protection from ozone, UV, and abrasion. The standard color of the coating is red-oxide, but custom colors such as blue, grey, black, yellow, and green are available
| Inner diameter | 10mm-115mm |
| Color | Red, black, other colors can be made according to customer's need, nylon fastening optional color: white or black |
| Work temperature | Can used continuously at - 75 ° C to 260 ° C, short moment resistance can be up to 1650 ° C |
| Nominal voltage | 7kv--25 kV. |
| Product properties | Fire prevention, flame retardant, heat insulation, insulation, anti-aging, prevent splash |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating | |||||
| Contents: | 100% glass fiber and silicone rubber | |||||
| Yarn type: | 9 um | |||||
| Internal Diameter : | 30mm | |||||
| Thermal Conductivity | 0.035(w/(m.k) | |||||
| Continuous Temp resistance: | No more than 550 0C | |||||
| Freeze temp: | -50 0C | |||||
| Loss on Ignition | ≦3.52% | |||||
| Chemical composition | ||||||
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 | |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 | |
Features:
Advanced production equipment
ISO 14000 / ISO 9000 / Quality certificate
Strict quality inspection, Strong R&D team
Environmental friendly without pollution
10 years manufacturing experience, strong and experienced export team
Application:
It provides a high degree of insulation value, protecting hot or cold or cryogenic lines, pipes and tubing from heat or cold loss, providing energy savings and abrasion resistance.

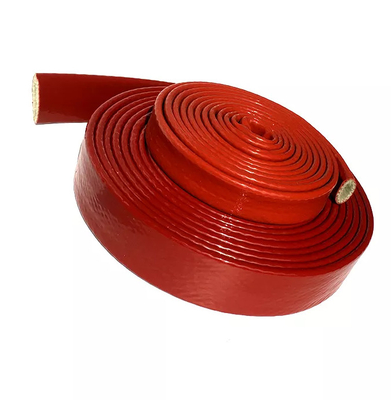

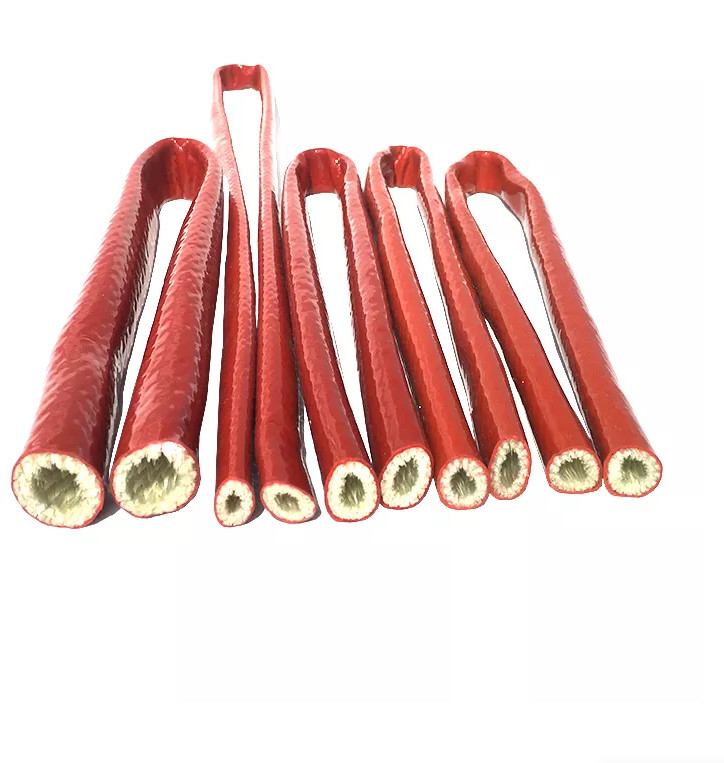

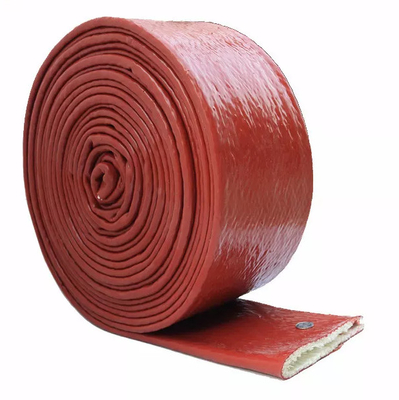

Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) | ||
| Silicone | Glass Yarn | ||||
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
